Application | Film and sheet

Metier papier
With a strong experience in plastic films and sheet since the beginning of the company. MONDON is able to work with PE – PP – PS – BOPP – PET cast or blowing extrusion, also the foam with the same raw materials.

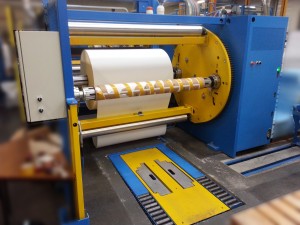

02Unwinder

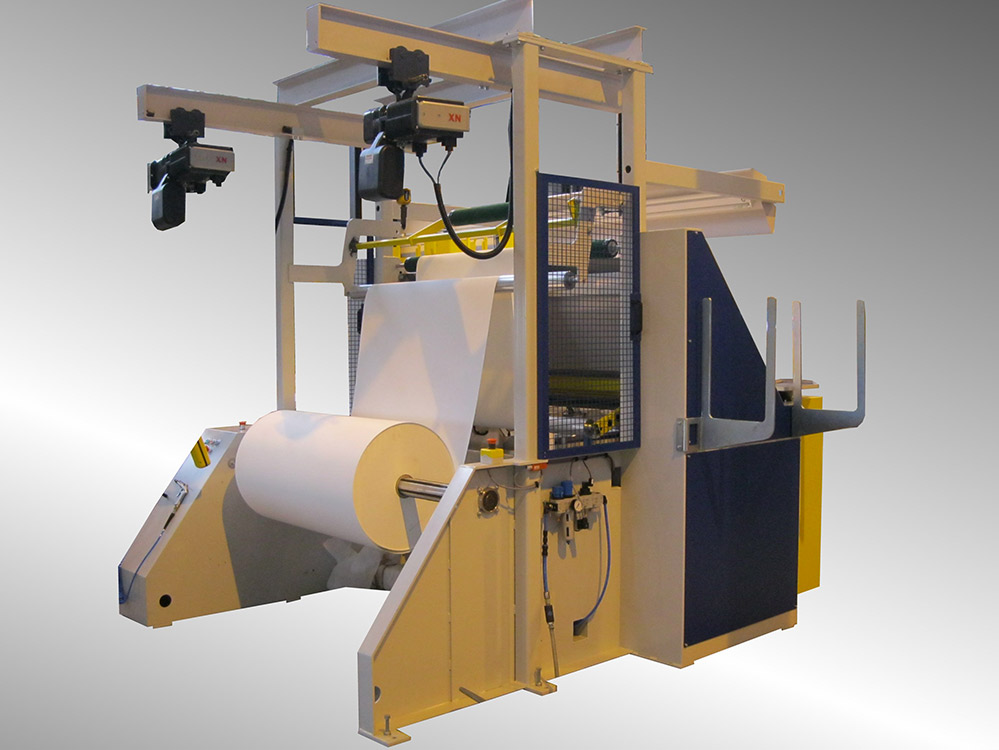

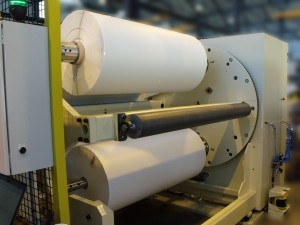

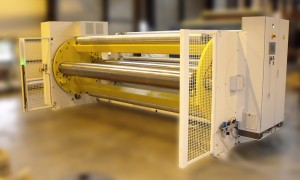

Automatic turret unwinder shaftless - TUW-S-1600 - Width : 1600 mm - Diameter : 1200 mm - Speed : 250 m/minUnwinder UW1000 - Width : 1000 mm ; diameter : 1000 mm ; speed : 250 m/min

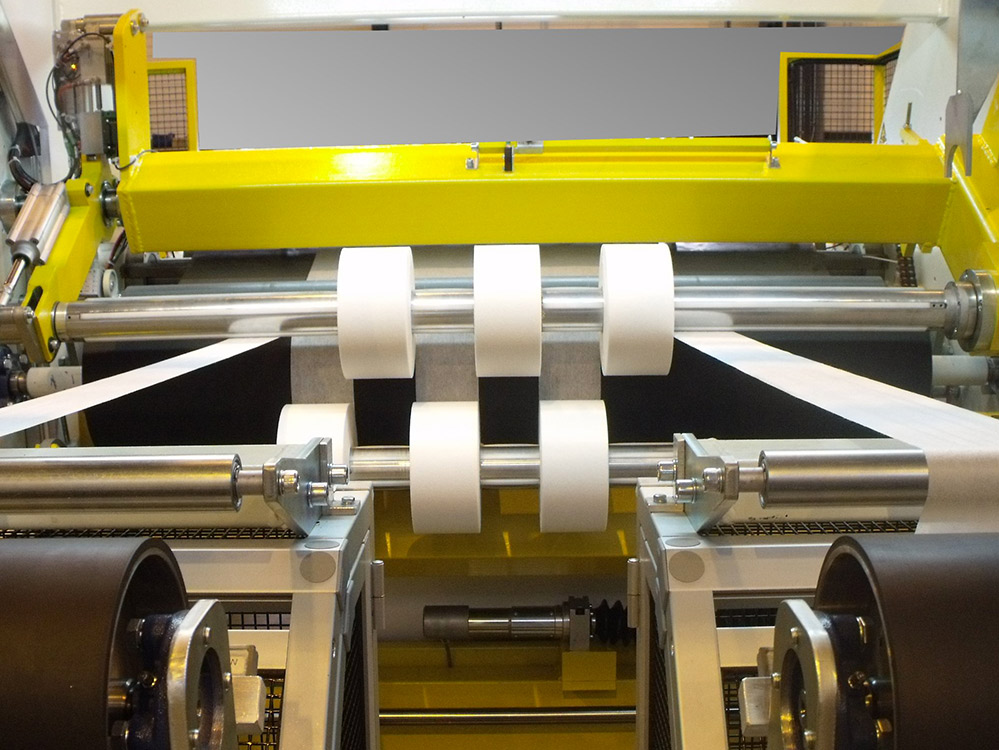

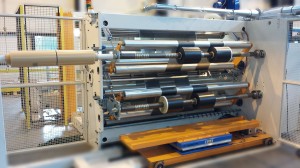

03Slitter rewinder

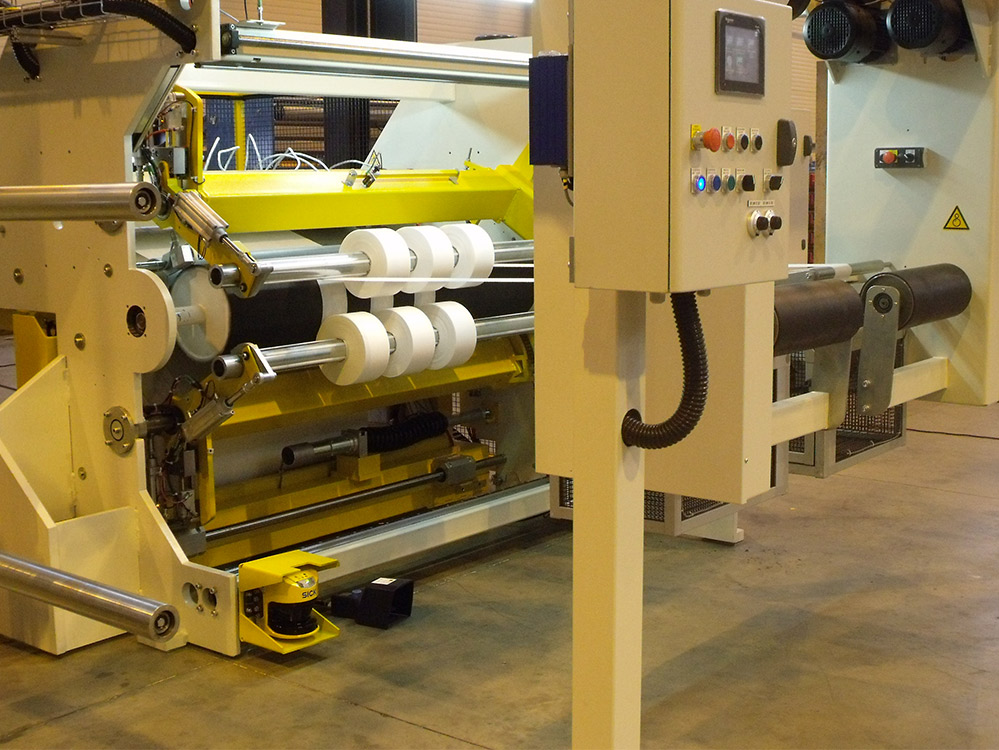

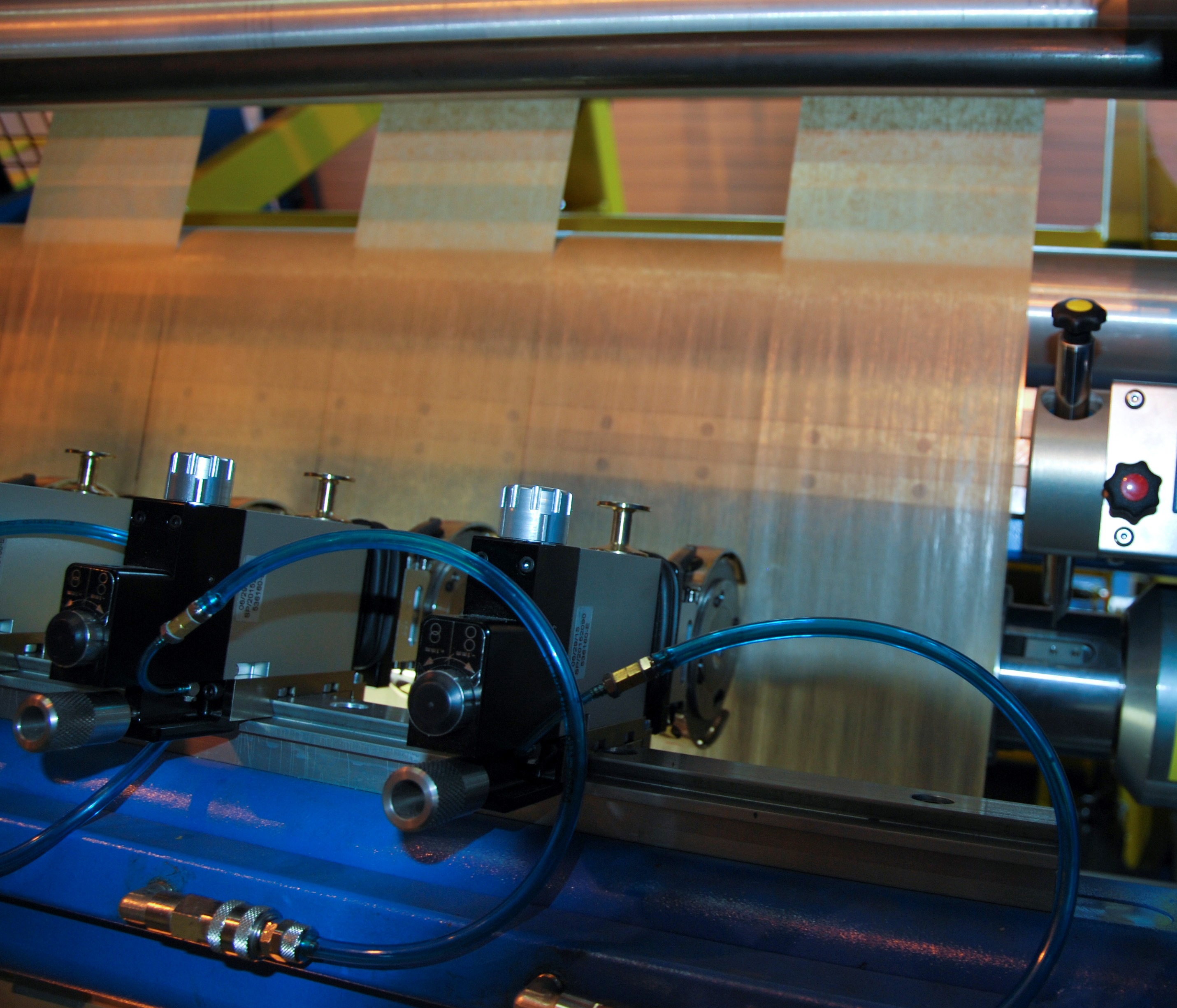

Cutting system Slitter rewinder SL1600 - Width : 1500 mm - Diameter : 1000 / 600 mm - Speed : 150 m/minSlitter rewinder SL1600 - Width : 1500 mm - Diameter : 1000 / 600 mm - Speed : 150 m/minSlitter for plastic film, Crush cut and rasor blade - Width : 2300 mm - Diameter : 1200 / 600 mm - Speed : 100 m/min

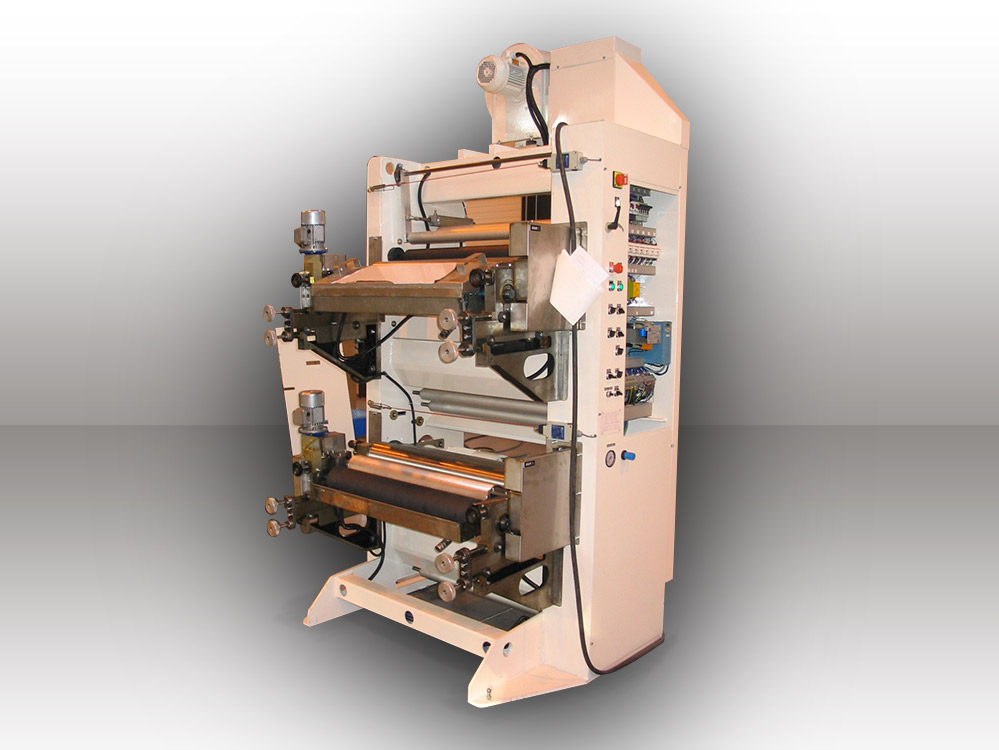

04Printing unit

flexographic printing unit 1 color - Width : 800 mm - Doctor blade chamber - Speed : 100 m/minflexographic printing unit 1 color - Width : 2000 mm - Doctor blade chamber - Speed : 200 m/minflexographic printing unit 1 color - Width : 1500 mm - Doctor blade chamber - Speed : 120 m/minFlexographic Varnish unit - Width : 1600 mm - Doctor blade chamber - Speed : 150 m/minFlexographic printing unit, 2 colors or Recto/Verso - Width : 800 mm - Speed : 80 m/minFlexographic printing unit 1 color - Printing width : 400 mm - Doctor blade chamber - Speed : 120 m/minflexographic printing unit 1 color - Width : 3300 mm - Doctor blade chamber - Speed : 200 m/min

05Perforation

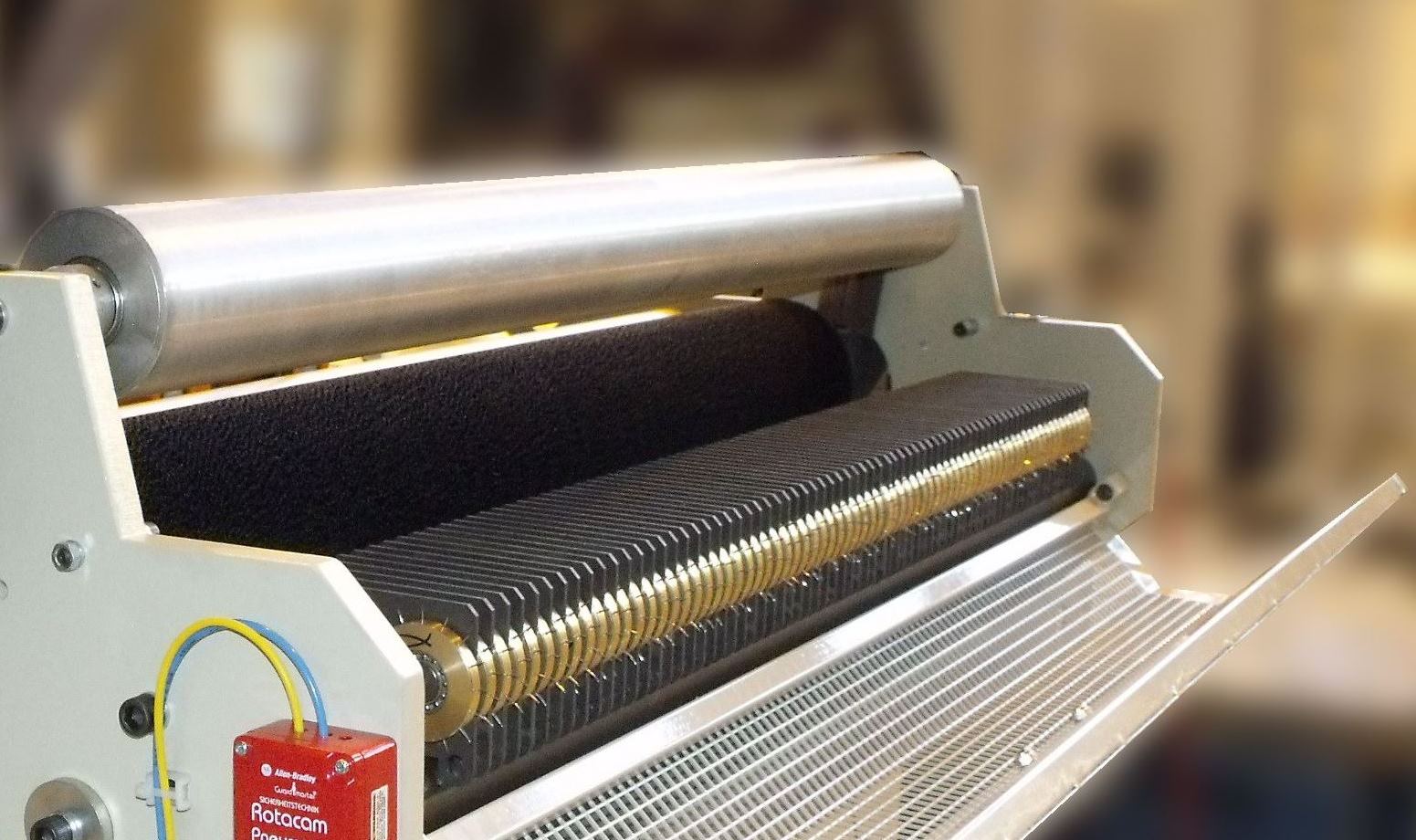

Punching machine MA1000 - Hole diameter : 3 to 80 mm - Mark/In five/Free mode Punching machine - Hole diameter : 3 to 80 mm - Width : 3200 mm - Mark/In five/Free modeCold microperforation - type 3FCold microperforation - type 2FRasor blade perforation - Width : 500 to 3200 mmNon stop cross perforation - Width : Up to 3 m - Speed : 120 m/minNon stop cross & machine direction perforation for sleeves - Width : 200 mm - Speed : Up to 150 m/min

-> Punching machine

06Welding

Pocket making machine - Width : 1200 mm - 1 to 6 tracks - Production rate : 150 cps/minLongitudinal welding machine - double weld + slitting - Multi-headCover bag making machine - Width :1500 mm - Production rate: 60 cps/minBag making machine - PP film - Width : 1200 mm - 1 or 2 tracks - Production rate : 100 cps/min

07Folders

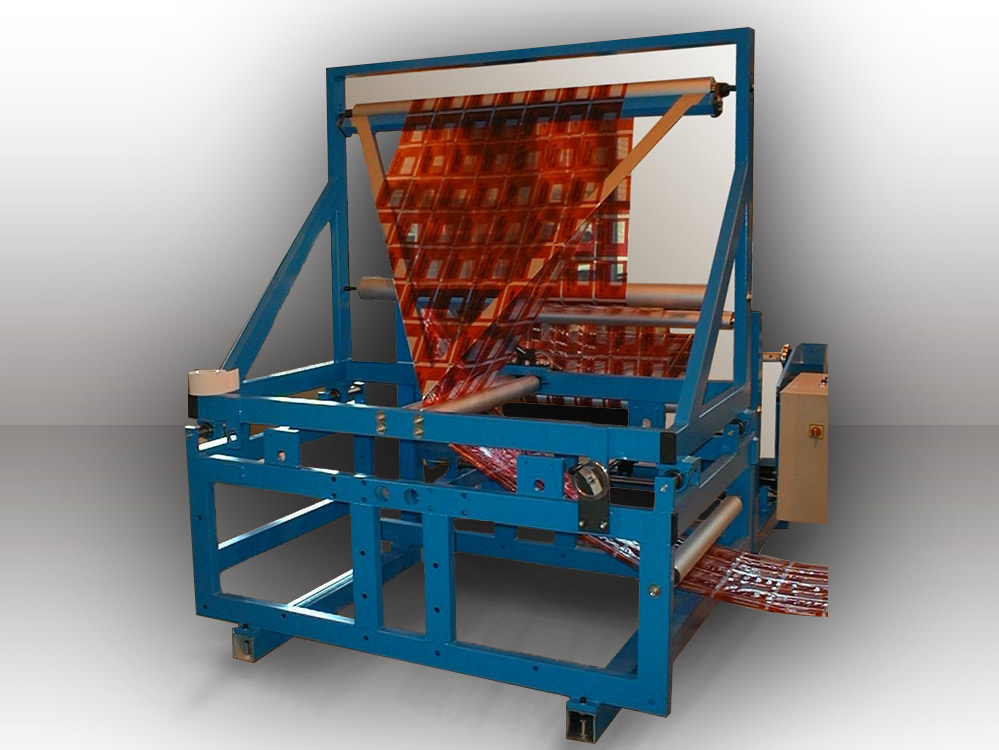

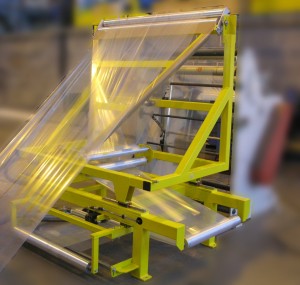

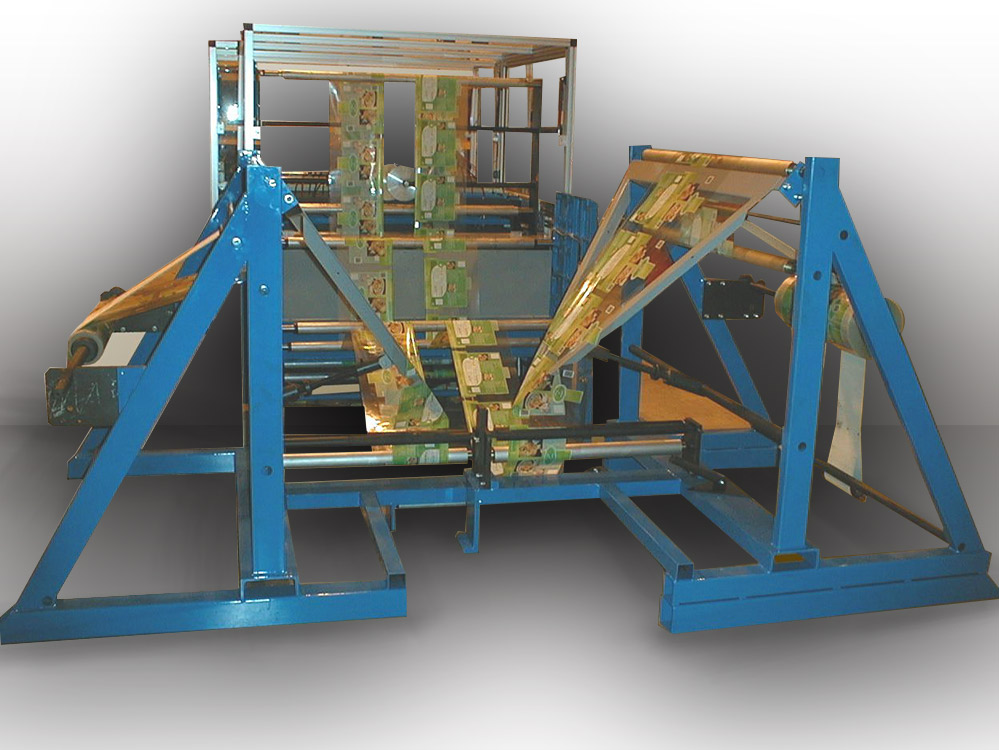

Folder + Reverse bar 90° to work in machine direction - Width : 500 à 3500 mmUnfolder + Reverse bar 90° to work in machine direction - Width : 500 à 3500 mmAdjustable gussets maker - Width : 800 à 1500 mmDouble folders for double tracks bag making machine - Width : 500 à 1200 mmVertical folder for fragile product - Width: 500 à 1200 mmSimple folder, symmetric or non symmetric - Input width : 500 à 3000 mm - Output width : 250 à 2000 mmFolder or unfolder - Width : 3000 mmTurn upside down bars or reverse bar

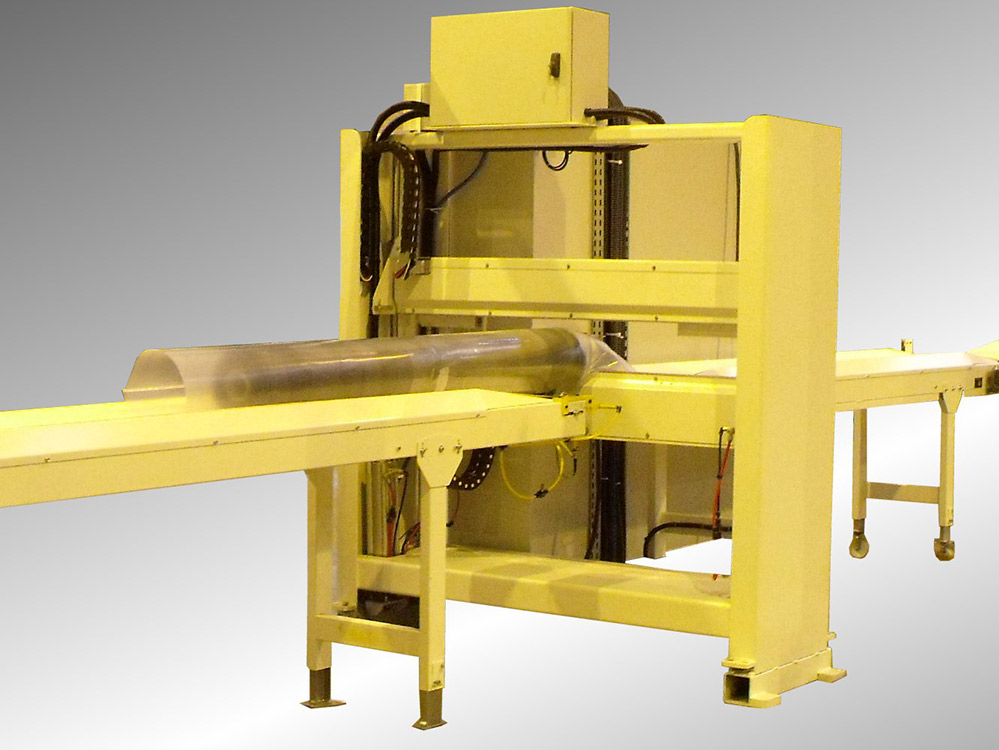

08Packing – Palletizing

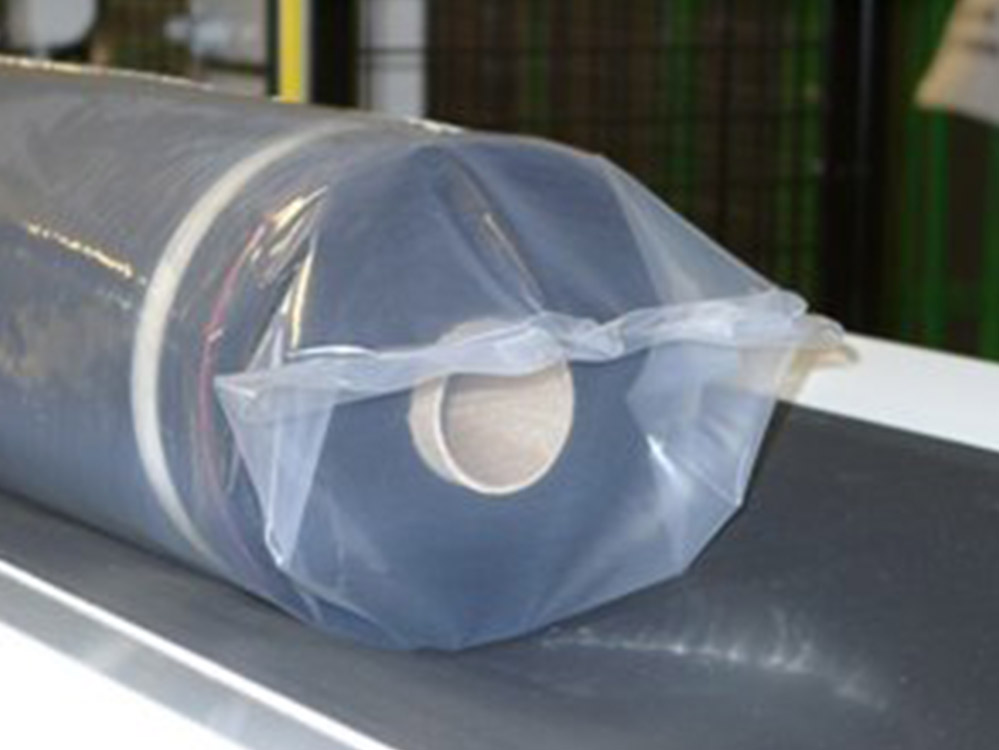

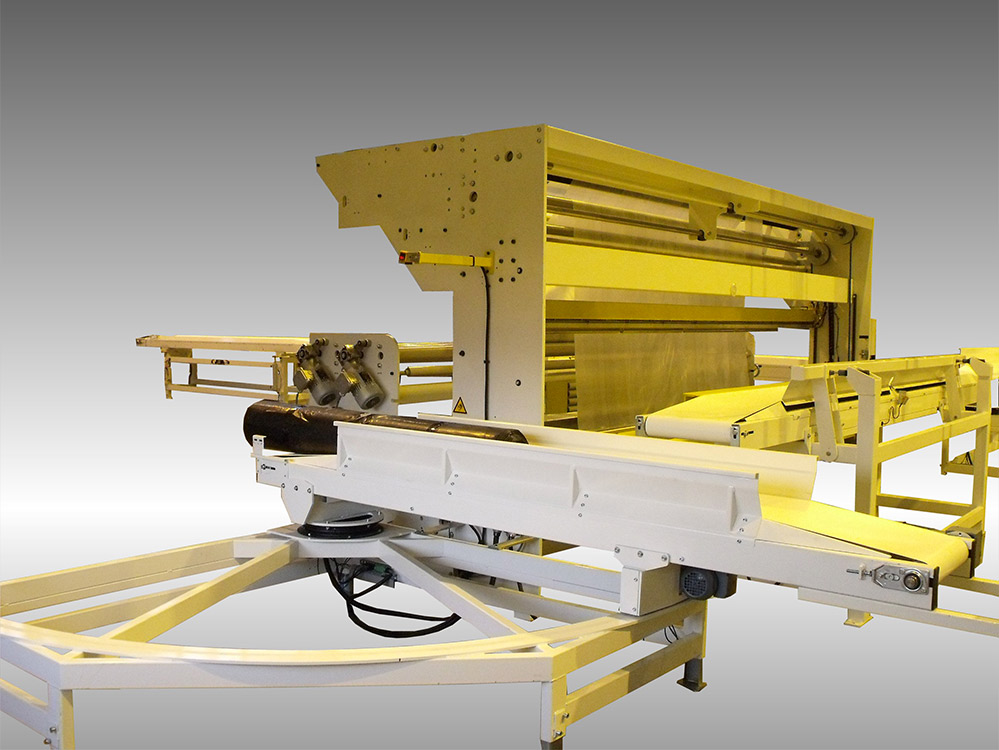

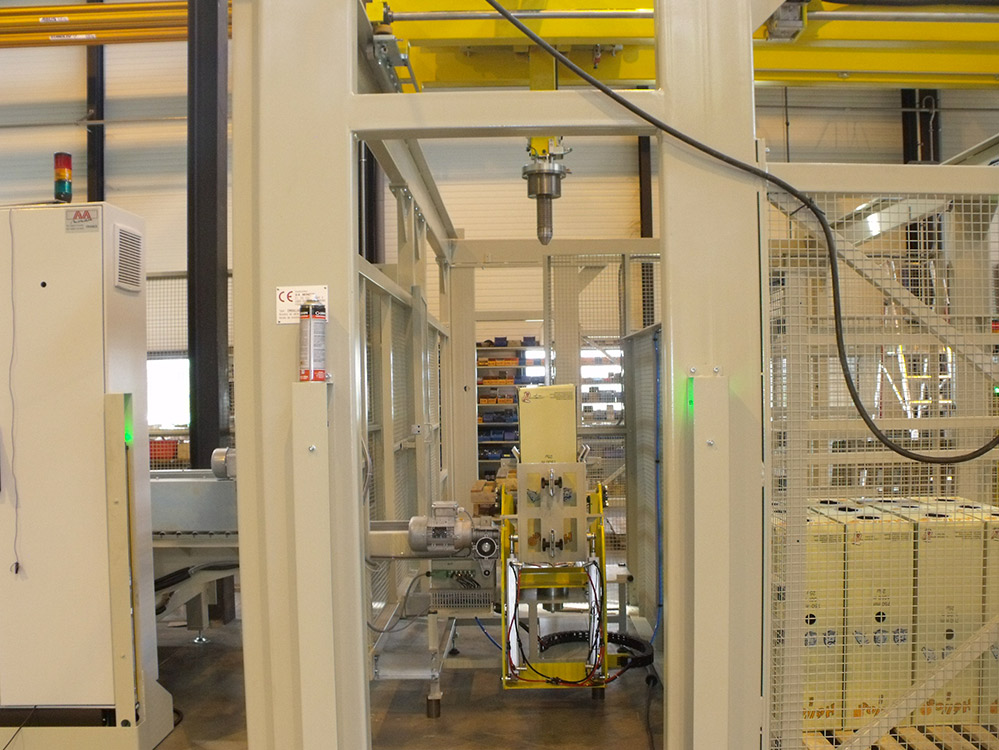

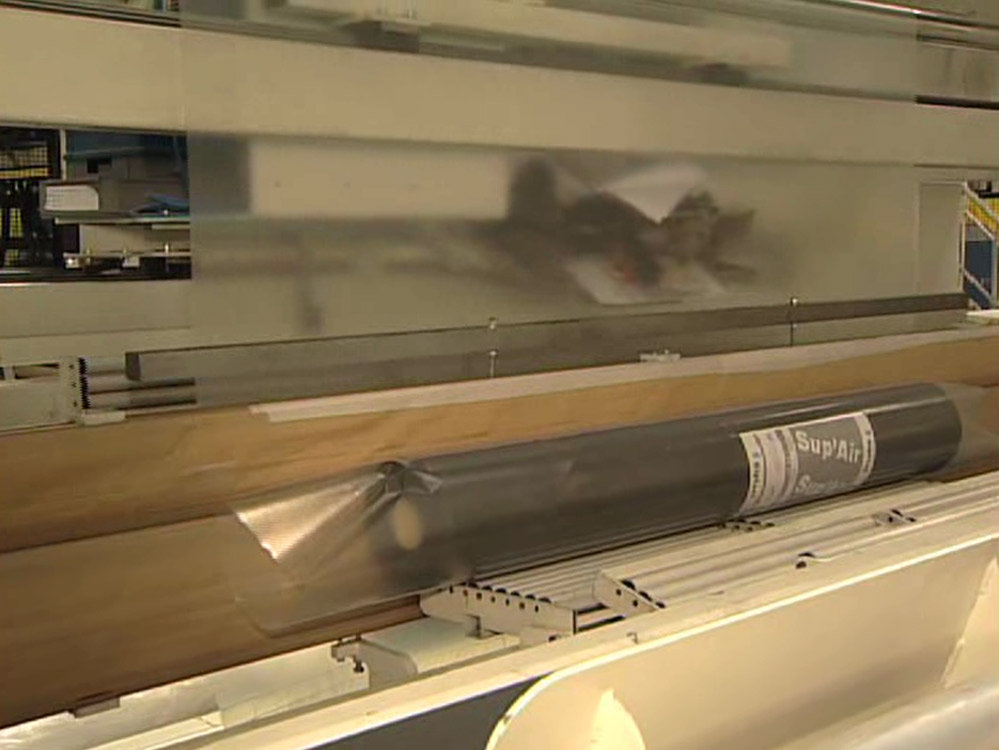

Wrapping machine with PE film - Roll length : 1000 to 3000 mm - Roll diameter : 100 to 600 mmUltrasonic end welding machineWrapping machine with PE film with label insertion - Roll length : 1000 to 3000 mm - Roll diameter : 100 to 600 mmLongitudinal wrapping machine with PE film - Roll length : 1000 to 3000 mm - Roll diameter : 100 to 250 mmThermal end weldingAutomatic roll palletizing - Width : 3000 mm - Diameter : 300 mmAutomatic strapped palletAutomatic case erector and automatic roll insertionAutomatic cardboard box palletizer

-> Film packing machine

09Coating

Hotmelt coating line, die without contact - Width : 500 mm - Roll diameter : 1000 mm - Speed : 200 m/min Hotmelt coating with die without contact Pilote line - Hotmelt coating - Die & Spray - Width: 500 mm - Diameter : 600 mm - Speed : 250 m/min Hotmelt coating with dieCoater with embossing roll & doctor blade chamber - Width : 1600 mm - Speed : 150 m/min

10Spooling

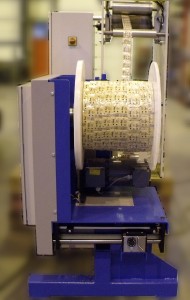

Spool of adhesive foam - Web width : 5 to 15 mmAutomatic spooling line for narrow web - Web width : 5 to 15 mm - Roll width : 300 mm - Diameter : 400 mm
Spool of plastic film - Web width : 20 to 70 mm

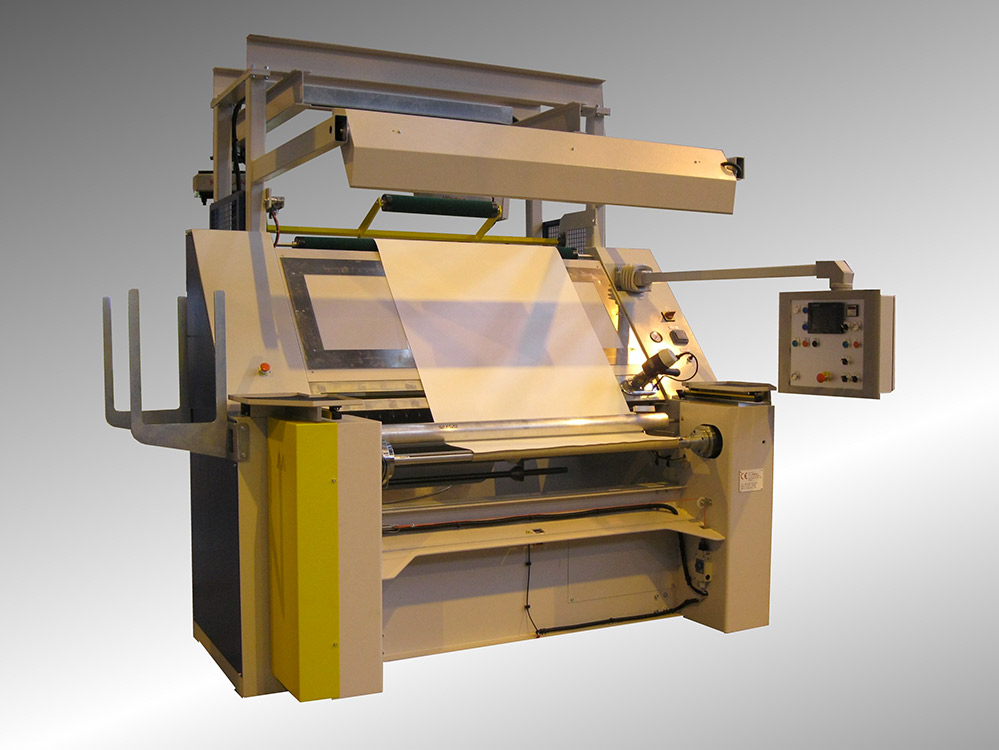

11Web inspection

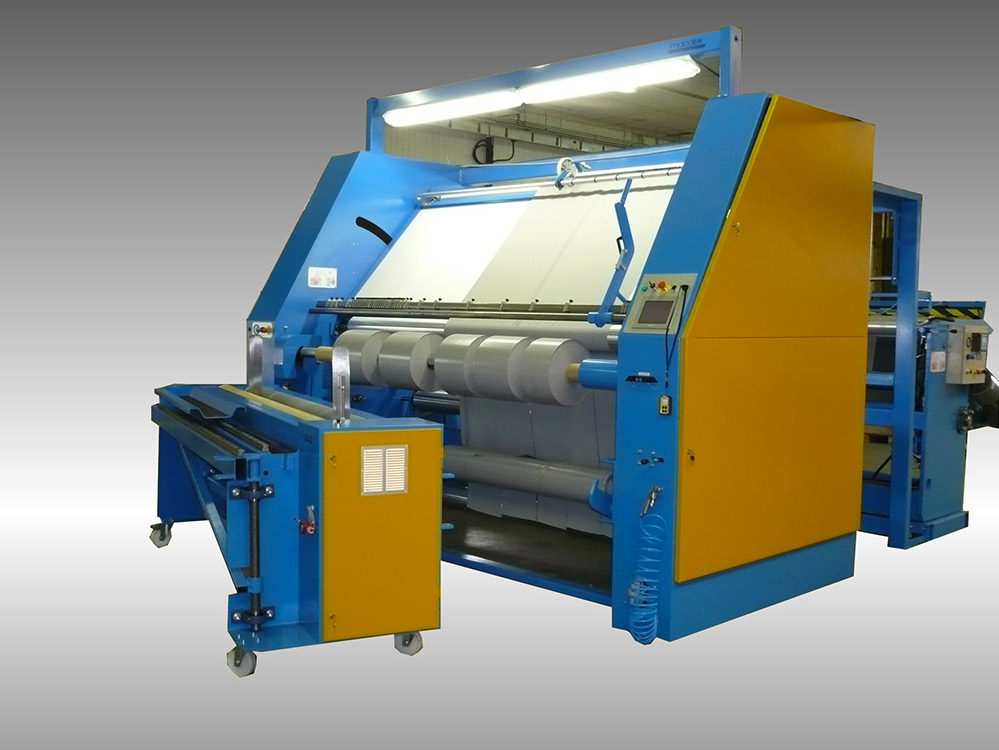

Inspection machine for plastic film - Width : 1500 mm - Diameter : 1200 mm - Speed : 60 m/minInspection machine for plastic film - Width : 1500 mm - Diameter : 1200 mm - Speed : 60 m/minMachine dInspection machine for PVC film with slitter - Width : 2300 mm - Diameter : 1200 mm - Speed : 80 m/mine visite avec refente pour film PVC - Laize : 2300 mm - Diamètre : 1200 mm - Vitesse : 80 m/min

12Accessories

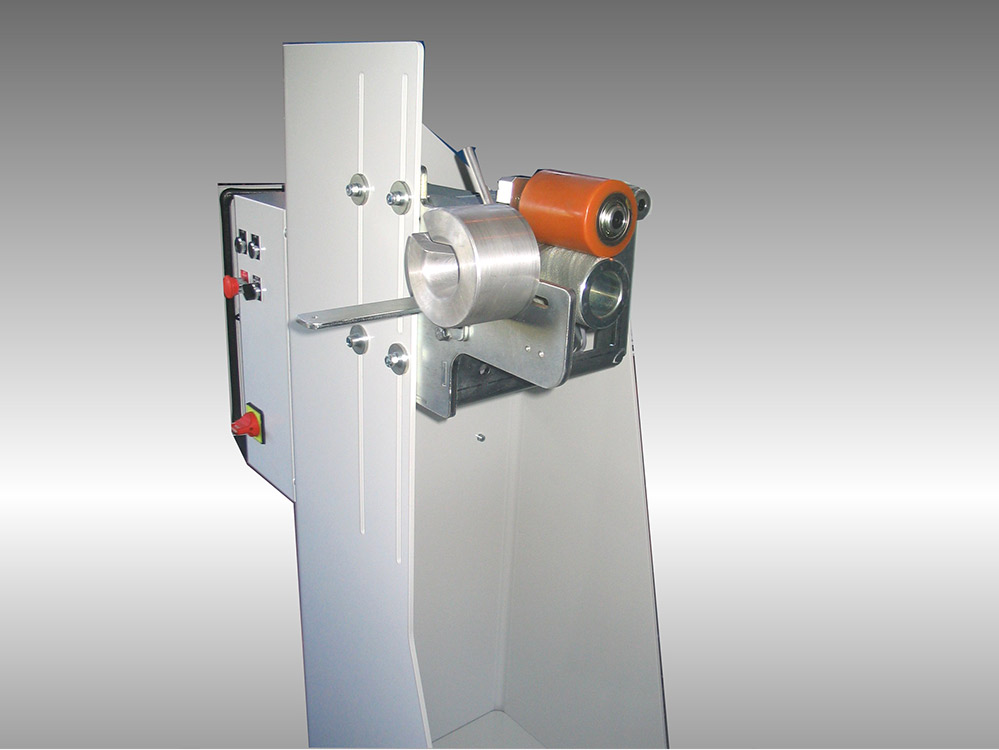

Edge trim pullerAutomatic core storeAutomatic taping rollAutomatic taping rollEdge trim winderDouble spool rewinder for Edge trimAutomatic unloading roll with trolley and lifting tableUnloading roll by lift table and trolley to extract expanding shaft Up ender
